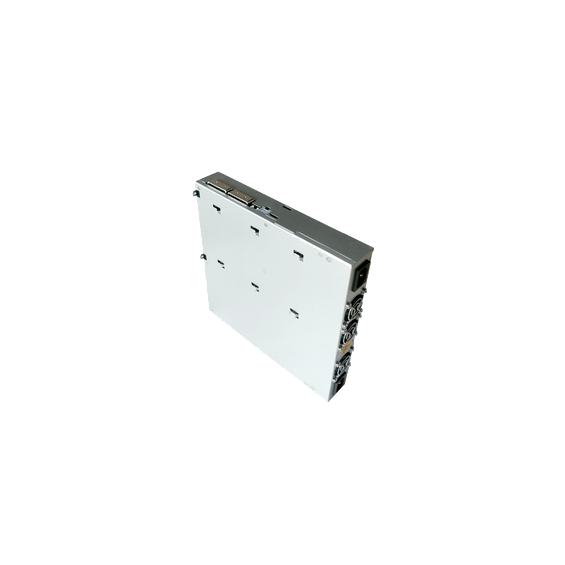

Antminer Replacement Power Supply APW9+_14.5V-21V For S17e, T17e, S17+, T17+
$600.00
OUT1 DC Voltage 14.5V-21V Rated Current(220V input) 170A Rated Power (220V input) 3600W Ripple & Noise <1% Source Regulation <1% Load Regulation <1% Setup, Rise Time <2S Power off Protection Trip Time >10mS OUT2 DC Voltage 12.3V Rated Current(220V input) 12A Ripple & Noise <1% Voltage Accuracy 12.2V-12.4V Source Regulation <1% Load Regulation <1% Setup, […]
Description
OUT1
| DC Voltage | 14.5V-21V |
| Rated Current(220V input) | 170A |
| Rated Power (220V input) | 3600W |
| Ripple & Noise | <1% |
| Source Regulation | <1% |
| Load Regulation | <1% |
| Setup, Rise Time | <2S |
| Power off Protection Trip Time | >10mS |
OUT2
| DC Voltage | 12.3V |
| Rated Current(220V input) | 12A |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.2V-12.4V |
| Source Regulation | <1% |
| Load Regulation | <1% |
| Setup, Rise Time | <2S |
| Power off Protection Trip Time | >10mS |
Input
| Voltage Range | 200-240V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（220V 50Hz） |
Protection
| Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes |
| Output Overcurrent | 95-130A |
| Overheat Protection | Yes |
Environment
| Operating Temperature | -20-60℃ |
| Operating Humidity | 20%-90%RH(non-condensing) |
| Altitude | < 2000m |
Structure
| Dimensions | 204.8SSS*157*42.5mm |
| Weight | 3.2kg |
| Cooling Mode | force-air cooling |
| Noise | 67dBA |
